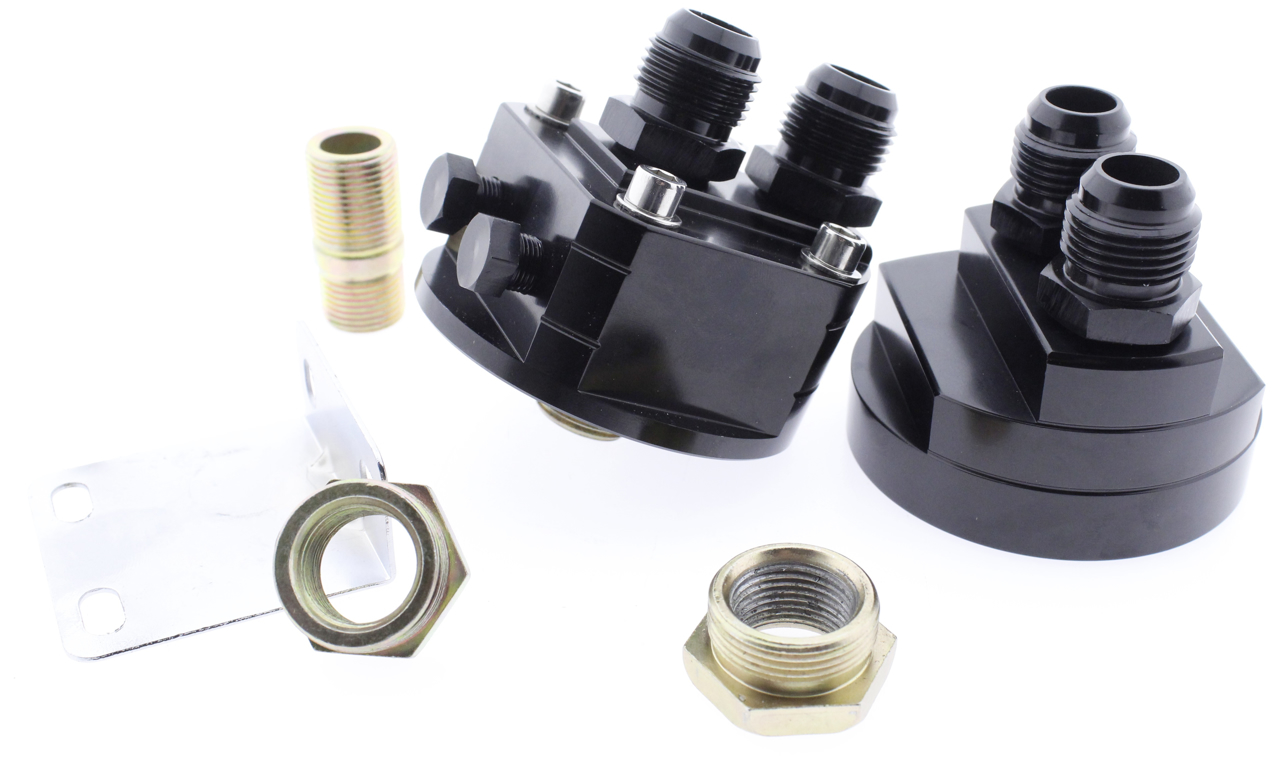

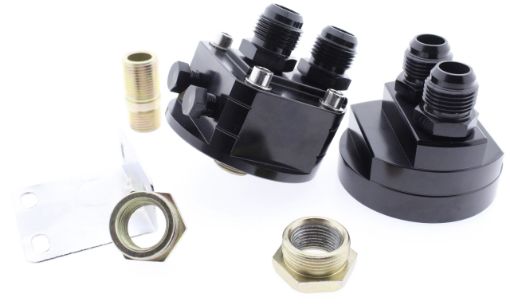

Oil cooler relocation - AN10

Oil filter relocation placed between engine block and oil filter.

Threaded pieces are included for the socket which is inserted on the block which is 20x1.5mm and JIC 3/4 UNF.

Use oil filter with M20x1.5 thread.

Height from block

Without nipples: 40mm.
With nipples: 67mm.
With 90 degree Forge AN fittings: 112mm.

O-ring diameter:

There are 2 rings on the flange towards the engine.

O-ring 1: 59 / 65mm.
O-ring 2: 67 / 75mm.
Clamping surface for oil filter 55-78mm.

JIC 3/4 UNF
VW, Renault Alpine, Opel, Ford, BMW

M20x1,5
Honda, Subaru, Peugeot, Citroen, Renault, Mazda, Mitsubishi, Nissan.

Oil relocation is typically used in connection with the installation of oil coolers.
