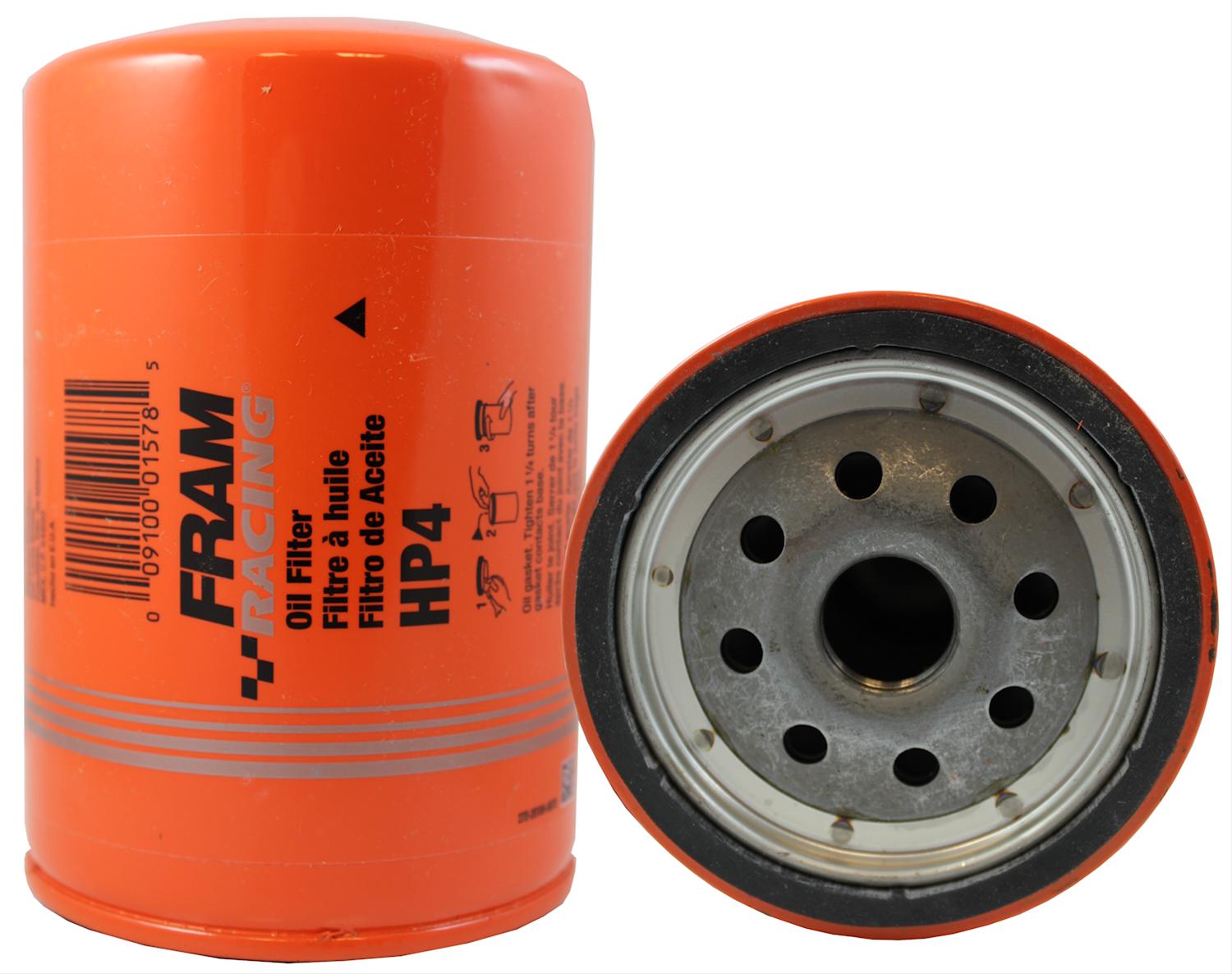

Fram HP Series Oil Filters HP4 - Thread Size: 13/16 in.-16

Manufacturer: At
Be the first to review this product
Oil Filter, HP Series, 13/16-16 in. Thread, 5.75 in. High
SKU: 1.00342.02-HP4

Availability Special order

€33.46 incl tax
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Fram HP Series Oil Filters

For maximum performance and durability on the street or at the track, trust Fram HP Series oil filters. They offer twice the oil flow rate and four times the dirt-holding capacity of standard oil filters. Their extra-thick steel cans and heavier gauge tapping plates are designed to withstand the high pressures and flexing caused by demanding driving conditions. Tough steel end caps hold a spiral-shaped center tube to offer more durability and protection against collapse. Fram HP Series oil filters are compatible with all oil types and have been optimized for racing and high performance street cars.

Additional features include:

* Low-restriction racing media designed for high oil flow
* 94 percent efficiency at 20 microns
* Silicone anti-drainback valve on many applications
* 10 to 18 gpm recommended maximum oil flow, depending on model
* Maximum burst pressure: 350 to 500 psi, depending on model
* Maximum operating pressure of 200 psi
* Screen over bypass valve for extra protection against large contaminants
* High-flow bypass valve
* Flanged steel end caps

Smallest Particle Filtered:
5 microns
Thread Size:
13/16 in.-16
Height (in.):
5.750 in.
Outside Diameter (in.):
3.719
Filter Bypass Relief Valve:
Yes
Anti-Drainback Valve:
Yes
Relief Valve Open (psi):
22 psi
Maximum Burst Pressure (psi):
500 psi
Gasket Outside Diameter (in.):
3.469
Gasket Inside Diameter (in.):
3.063
Gasket Thickness (in.):
0.344 in.
