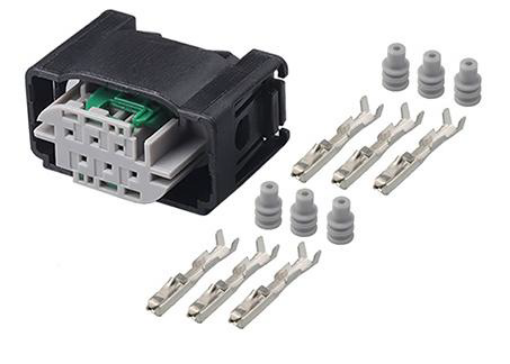

Plug for Bosch electronic throttle

Plug for Bosch electronic throttle

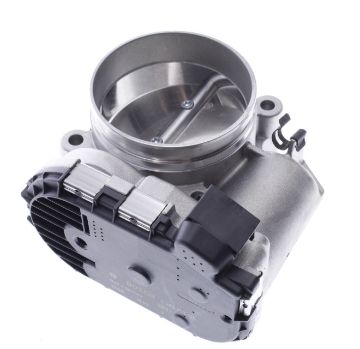

Fits Bosch throttle bodies 68, 74 and 82 mm

Pin 1 A - Engine - (DBW engine ground)
Pin 2 B - Pot - (TPS ground)
Leg 3 C - Pot + (TPS plus)
Leg 4 D - Motor + (DBW motor plus)
Pin 5 E - Pot 2 (TPS AV2)
Pin 6 F - Pot 1 (TPS AV1)

Maxxecu connection:

Pin 1 A - Motor - (Ground)
Pin 2 B - Pot - (Ground)
Pin 3 C - Pot + (+5v)
Pin 4 D - Motor + (+12v)
Pin 5 E - Pot 2 (AIN x)
Pin 6 F - Pot 1 (AIN x)

The picture shows an example with a double e-valve housing with e-gas. If only one throttle body is used, use only e-throttle 1 main and e-throttle 1 backup.
