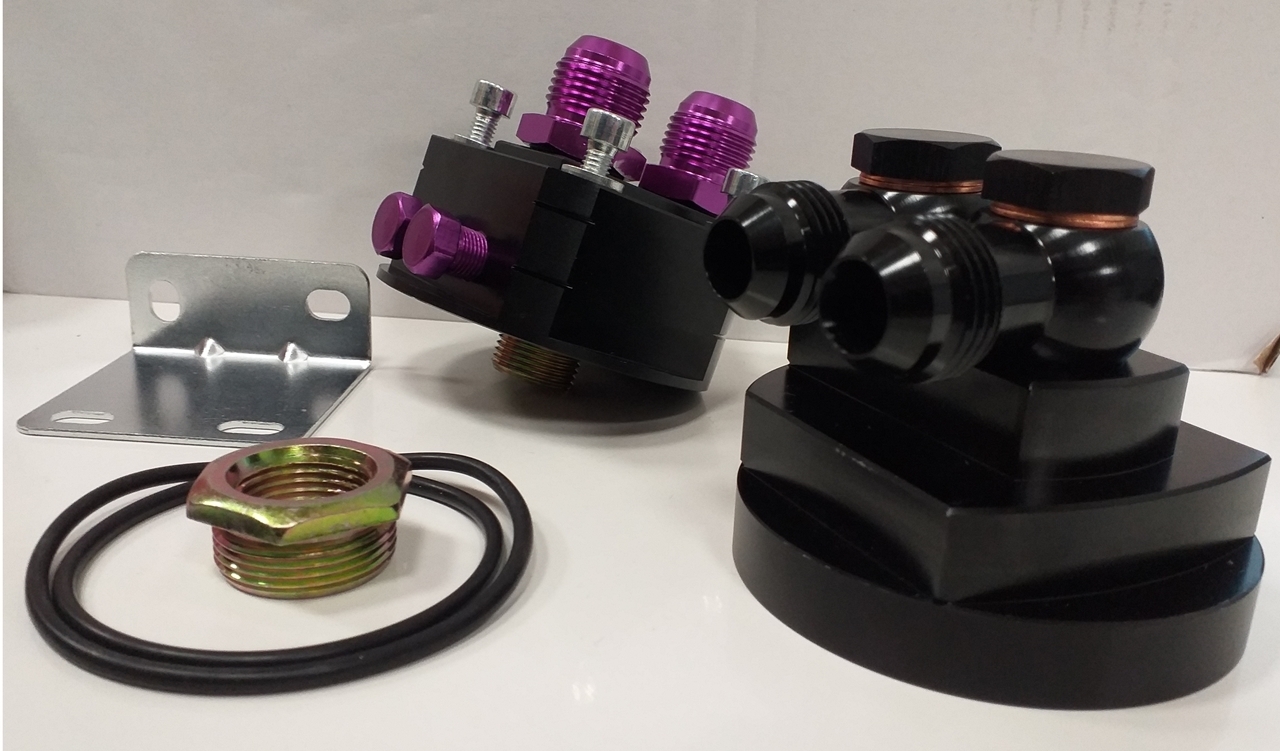

Oil cooler relocation - AN10 - Low profile

Oil filter relocation placed between engine block and oil filter.

Threaded pieces are included for the socket which is inserted on the block which is 20x1.5mm and JIC 3/4 UNF.

Use oil filter with M20x1.5 thread.

Height from block

Without nipples: 40mm.
With stud bolts: 67mm. - From the banjo islands, buy AN-fitting at the angle you want.

JIC 3/4 UNF
VW, Renault Alpine, Opel, Ford, BMW

M20x1,5
Honda, Subaru, Peugeot, Citroen, Renault, Mazda, Mitsubishi, Nissan.

Oil relocation is typically used in connection with the installation of oil coolers.
