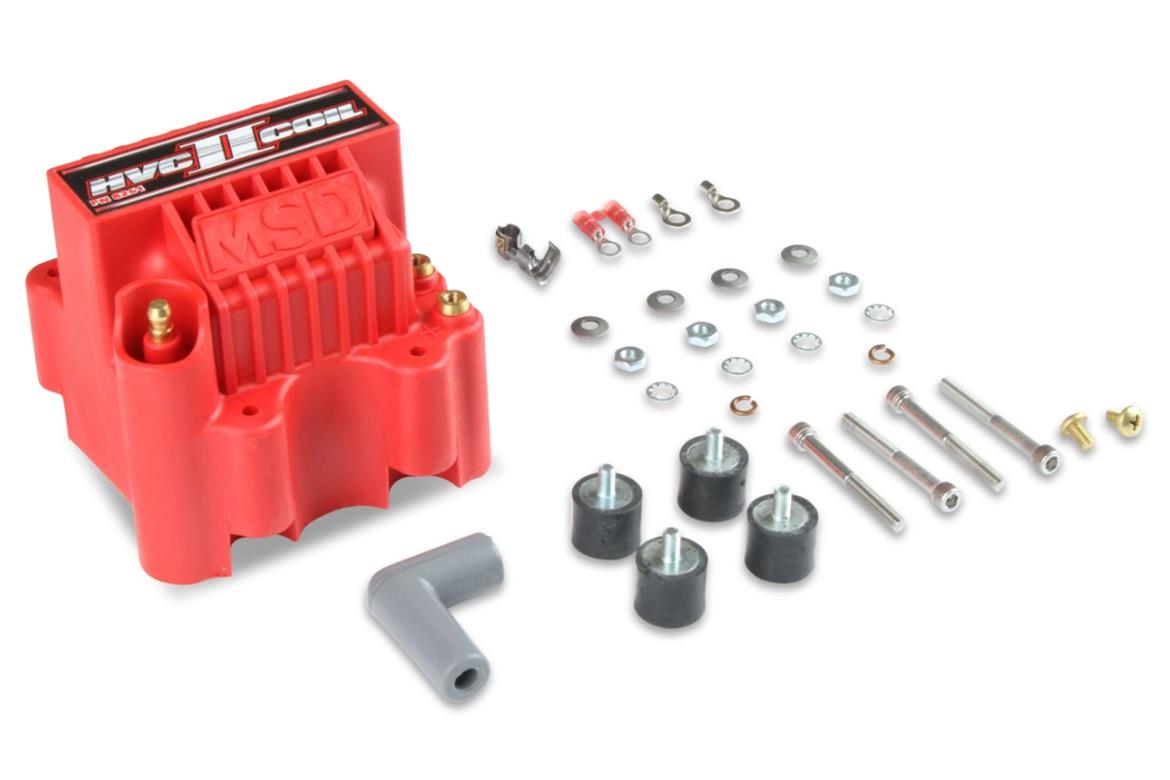

MSD HVC-2 Coils 8261

Manufacturer: All IN Performance
Be the first to review this product
Ignition Coil, Blaster HVC-2, U-Core, Drag Race, Square, Epoxy, 45,000 V
SKU: 1.00129.03-8261

Availability 2 in stock

€401,54 incl tax
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

MSD HVC-2 coils utilize an iron U-core design with a segmented bobbin for improved voltage distribution. The bobbin is molded from Dupont Rynite FR946 material. That means it has incredible dielectric capabilities at high temperatures. The housing features far-spaced brass primary terminals, and a well-protected secondary tower for increased spark isolation. HVC-2 coils are designed for use with MSD 7 Series ignitions.

Primary Resistance:
0.016 ohms
Secondary Resistance:
30.00K ohms
Maximum Voltage:
45,000 V
Inductance:
0.25 mH
Peak Current:
2 amps
Spark Duration:
150 uS
