ECU Master PMU

Manufacturer: ECU Master
0Types Available

General

Temperature range AECQ100 GRADEE1 (-40 to +125 degrees Celcius.
CPU 32 bits automotive, 90 MIPS
Reverse polarity protection Yes, internal
Operating Voltage 6-22V, immunity to transients accordig to ISO 7637
Enclosure IP 60, bespoke CNC machined aluminium
Size (mm) and weight (g) 131x112x32.5 - 345g
Connectors 1x 39 Automotive connector, 1x M6 stud for battery connection
PC Communication

CAN (ECUMASTER USBtoCAN, PEAK CAN, KVASER)

Outputs:

High current outputs 10x25A(cont.), 6x 15A(cont.) with overcurrent and overheating protection. Outputs may be paired to increase continuous current capability. Current and voltage is measured for each output.
Total current output 150A continuous
Output current control step 100mA
Wipers output Dedicated output with wiper braking feature
+5V Monitored 5V, 500mA output for powering external sensors.

Inputs:

Analog inputs 16 inputs, 10 bit resolution, 0-5V (protected), with software selectable 10K Ohm pullup and pulldowns
CAN Keypads 2x ECUmaster keypads (4, 6, 8, 12 keys)








*
*
*

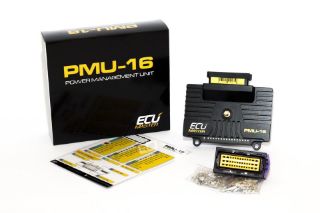

Picture of ECU Master PMU - With datalogger
ECU Master PMU - With datalogger
SKU: 1.00145-01-PMU-16DL

Availability 1 in stock

€1016.62 incl tax
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Picture of ECU Master PMU - Standard
ECU Master PMU - Standard
SKU: 1.00145.05-PMU-16

Availability Special order

€856.02 incl tax
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

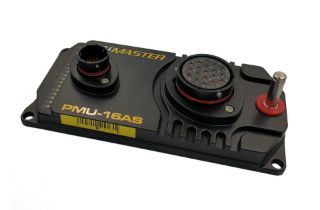

Picture of ECU Master PMU - Autosport Version
ECU Master PMU - Autosport Version

Availability Special order

€1712.57 incl tax
