ECU Master ADU

Manufacturer: ECU Master
5" & 7"
0Types Available

General:

Temperature range AECQ100 GRADE1 (-40 to +85degrees C
Reverse battery protection Yes, internal
Operating voltage 6-22V, immunity to transients accotrding to ISO 7637
Enclosure IP 60, custom CNC machined aluminium
Connectors 1x35 positions, AMP Automotive connector
PC communication CAN BUS - ECUmaster interface, Peak or Kvaser
Display type TFT 800x480
Brightness of display 5" - 600cd/m2, 7" - 1000 cd/m2

Inputs / outputs

Analogue inputs 8 inputs, 10 bits, 0-5V, software controlled pull-up/pull-down 10k resistor. Al analog inputs can be used as switches
Digital inputs 8 digital inputs, software controlled input sensitivity (VR, Hall), software controlled 4K7 pull-up resistors, used for engine speed sensors, Flex Fuel, wheel speeds, turbocharger shaft speed. All digital inputs can be used as switches
Outputs 2 low side outputs (switch to ground), up to 2A, 1 analogue output (0.5V) 10 bits
+5V Output Monitored 5V output for powering external sensors
*
*
*

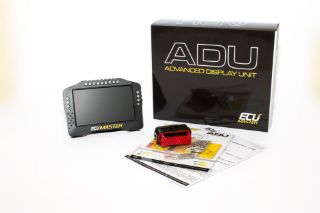

Picture of ECU Master ADU - 5"
ECU Master ADU - 5"

Availability Special order

€930.97 incl tax
i h
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

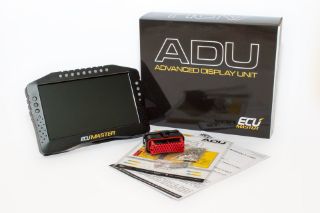

Picture of ECU Master ADU - 7"
ECU Master ADU - 7"
SKU: ADU

Availability Special order

€1177.23 incl tax
