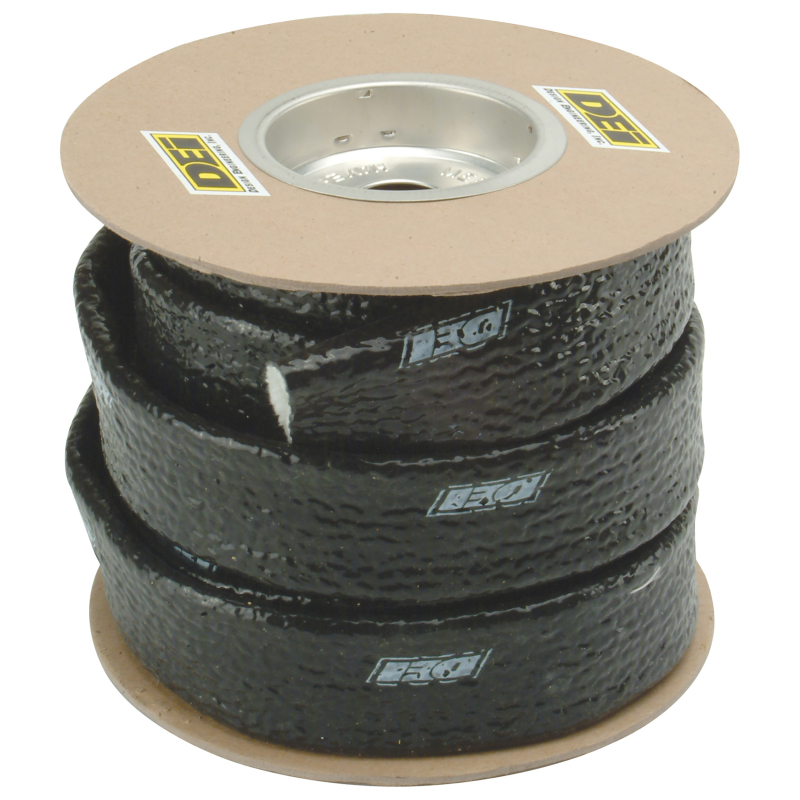

Fire Sleeve solves the problem of heat and abrasions damaging fuel, transmission and brake lines and is a fireproof solution. Constructed from a high temperature resistant braided glass material, woven into a sleeve and heavily coated with 100 iron oxide silicone rubber, Fire Sleeve thermal insulator sleeve provides the ultimate in heat insulation and protection from direct heat up to 500F. Insulates wiring, hoses, oil brakes transmission lines more Use for bundling protecting hoses, electrical wiring, etc. Withstands 2000F of intermittent heat Size 1 inch x 100 feet Fitment Chart AN Conversion Chart AN Size Metal Tube O.D. Thread Size 2 18 in. 516 24 SAE 3 316 in. 38 24 SAE 4 14 in. 716 20 SAE 5 516 in. 38 18 SAE 6 38 in. 916 18 SAE 8 12 in. 34 16 SAE 10 58 in. 78 14 SAE 12 34 in. 1 - 116 12 SAE 16 1 in. 1 - 516 12 SAE 20 1 - 14 in. 1 - 58 12 SAE 24 1 - 12 in. 1 - 78 12 SAE 28 1 - 34 in. 2 - 14 12 SAE 32 2 in. 2 - 12 12 SAE Fire Sleeve Application Chart Part Name Line Size 10470 38 in. Fire Sleeve 3AN4AN6AN 10472 58 in. Fire Sleeve 6AN8AN 10474 1 in. Fire Sleeve 10AN12AN16AN58 in. Heater Hose34 in. Heater Hose Braided Kevlar line was used in testing. You may notice a slight difference in size if you have Braided Stainless Steel lines. Tight fit If you have fittings on your line, you may need to order one size up. You can achieve between 116 in. and 18 in. stretch out of our material. This may help on installs with fittings already on the lines.
